3.1 Problem Definition

Database D = {T1,T2,..,Tn} is a set of transactions, and I = {i1,i2,..,il} is a set of all items used in D. Each transaction consists of a set of items, Ti={i1,i2,..,im}. Each transaction is identified with an individual identifier, and each item ip included in the transaction Tj is characterized with the purchase quantity and profit value. The purchase quantity, which is denoted as q(ip,Tj), represents the total quantity of ip in Tj. The profit value, which is described as pr(ip), means the profit of ip. An itemset X={i1,i2,..,ik} is a set of joined items. If the length of X is k, then it is called k-item.

Table 1 shows an example of database consisting of 4 transactions and 7 items. Table 2 shows the profit value of each item. We use this example to explain our proposed high utility itemset (HUI) mining algorithm.

Definition 1 (Item utility): Utility of an item $i_{p}$ in a transaction $T_{j}$ is denoted by $iu(i_{p},\:T_{j})$ and defined as the following equation (1):

Definition 2 (Itemset utility): Utility of an itemset $X$ in a transaction $T_{j}$ is denoted by $iu(X,\: T_{j})$ and defined as the following equation (2):

For instance, if itemset X={a,b}, iu(ab, T2) = iu(a,T2) + iu(b,T2) = 6 + 12 = 18.

Definition 3 (Sum of item utility): Utility of an itemset X in the database D is denoted by iu(X) and defined as the following equation (3):

Definition 4 (Remaining utility): Items following the itemset that belongs to $X$ in a transaction $T_{j}$ are the remaining items. The utility of the remaining items is denoted by $ru(X,\: T_{j})$ and defined as the following equation (4):

where $R$ is a set of items following $X$. For instance, $ru(bcd,\: T_{3})$$= iu(e,\: T_{3})= 6$.

Definition 5 (Transaction utility): Transaction utility of $T_{j}$ is denoted by $tu(T_{j})$ and defined as the following equation (5):

For instance, T4 = {a,d,f}, tu(T4) = iu(a,T4) + iu(d,T4) + iu(f,T4) = 6 + 1 + 3 = 10.

Definition 6 (Transaction weighted utility): Transaction weighted utility of $X$ in $D$ is the total transaction utility of all transactions containing $X$. It is denoted by $TWU(X)$ and defined as the following equation (6):

3.2 BHUI Algorithm

Now, we describe our BHUI algorithm. The core function of BHUI is to find all set of high utility itemsets, which is denoted as HUI. HUI is initialized as ∅. Without loss of generality, the sum of all transaction utilities in $D$, which is $TU(D)=\sum tu(T_{j})$ for all $T_{j}\in D$, is the utility of $D$. Min_util is a minimum threshold to become a high utility itemset and it is determined as min_util = $TU(D)\times\delta$ for a predefined threshold value $\delta$. $\delta$ can be either systemically predefined or given from an expert user. Suppose that $\delta$ is 0.3. Thus, min_util = $69 * 0.3 = 20.7$ in our example.

First of all, the proposed algorithm initially calculates the $TWU(i_{p})$ for each $i_{p}∈ I$ in order to discard items that do not satisfy min_util. This is to find high utility itemsets with a length of 1, called 1-item. In our example, $TWU(a)= tu(T_{1})+$ $tu(T_{2})+ tu(T_{4})= 41$, $TWU(b)= 50$, $TWU(c)= 50$, $TWU(d)= 69$, $TWU(e)= 28$, $TWU(f)= 10$, and $TWU(g)= 9$. As a result, {e}, {a}, {c}, {b} and {d} are determined as high utility itemsets of length 1, and added to HUI. For the chosen itemsets, $tu(T_{i})$ of each transaction $T_{i}$ is reconstructed as shown in Table 3. $tu(T_{1})$ are $tu(T_{4})$ are updated because $f$ and $g$ are discarded from items.

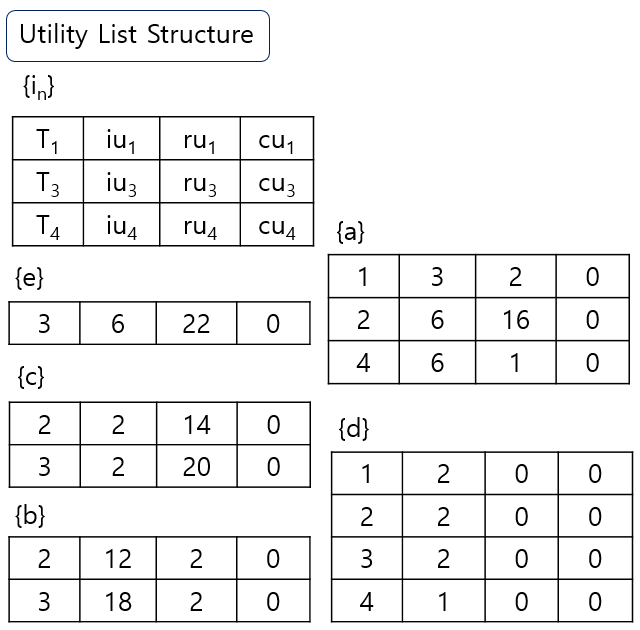

Once high utility itemsets are determined, the utility list structure (ULS) of each itemset is generated. As shown in Fig. 1, the ULS of each itemset consists of four attributes: tid, iu, ru, and cu. For an itemset X, tid indicates a transaction identifier containing X, iu is determined by iu(X, Ttid), ru is determined by ru(X, Ttid), and cu denotes a common utility of X that is defined as follows:

Definition 7 (Common utility): Common utility of an itemset $X^{k}$ of length $k$ is denoted by $cu(X^{k})$ and defined as $iu(X^{k-1})$, where $X^{k-1}$ consists of the first $k-1$ items of $X^{k}$. $cu(X)$ for $X$ with a length of 1 is initialized as 0.

For instance, $cu(ab)$ of $X=\{a,\:b\}$ is $iu(a)$.

The ULS is created in an ascending order of $TWU(X)$, such as $e < a < c < b < d$. Once ULS constructing for initial high utility itemset is completed, the proposed high utility itemset mining (HUI_Mining) algorithm is performed repeatedly. The mining algorithm finds the next level of high utility itemsets. That is, 2-item sets that are itemsets of length 2 are generated by joining (or combining) two 1-item itemsets. A joined itemsest $X$ of $X_{i}$ and $X_{j}$ is defined as $X = X_{i}∪ X_{j}$. The join process is also peformed in an ascending order of TWU. Since $TWU(e)< TWU(a)< TWU(c)< TWU(b)< TWU(d)$, all possible combinations for 2-item are $\{e,\:a\}$, $\{e,\:c\}$, $\{e,\:b\}$, $\{e,\:d\}$, $\{a,\:c\}$, $\{a,\:b\}$, $\{a,\:d\}$, $\{c,\:b\}$, $\{c,\:d\}$, and $\{b,\:d\}$.

At this point, constructing ULS of all possible itemsets of 2-item is very time consuming. If we can extract itemsets that have high join possibility, which are called joinable itemsets, the HUI mining time will be reduced. The join possibility indicates the likelihood that the joined itemset will be a high utility itemset. In order for a joined itemset to become a high utility itemset, a common transaction, which contains all of the joined items, must exist. Thus, the suggested strategy is to use bitwise AND operation (∧) to check if there is a common transaction involving the joined itemset. To do this, for an itemset $X$, a bit representation for all transactions is required. Let $b(X)$ be the bit representation of $X$. As shown in Fig. 2, if a transaction containing $X$ is set to 1, otherwise, it is set to 0. Consequently, a joined itemset $X$ of $X_{i}$ and $X_{j}$ is a joinable itemset if $b(X_{i})∧ b(X_{j})≥ 1$. In addition, if $TWU(X)≥$min_util, then the ULS of $X$ is finally constructed.

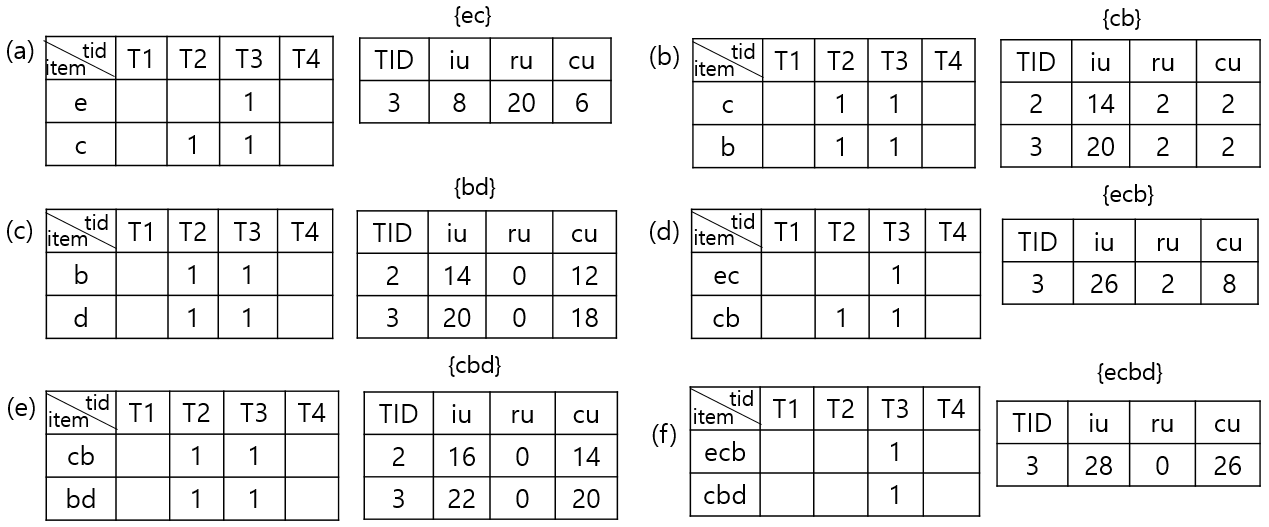

We explain the proposed HUI mining process with our examples. Fig. 2(a) shows bit representations of $\{e\}$ and $\{c\}$, and $b(e)∧ b(c)= 0010 ≥ 1$. Hence, a joined itemset $\{e,\: c\}$ is a joinable itemset. After the bit operation, common transactions that are corresponding to 1 in the bitwise AND result are determined. Since only $T_{3}$ is 1 in the bitwise AND result, $TWU(ec)$ is calculated only for $T_{3}$. Thus, $TWU(ec)= tu(T_{3})=$ $28 ≥$min_util. So, ULS of $\{e,\: c\}$ is constructed. $iu(ec,\: T_{3})= 8$, $ru(ec,\: T_{3})= 20$, and $cu(ec)= iu(e)= 6$. $iu(e)$ can be obtained from the ULS of $\{e\}$. Here, since $iu(ec)= 8 ≤$min_util, $\{e,\: c\}$ is not a high utility itemset. However, since $iu(ec,\: T_{3})+ ru(ec,\:$ $T_{3})= 28 ≥$min_util, it is still a joinable itemset. In Fig. 2(b), since $b(c)∧ b(b)= 0110 ≥ 1$, $\{c,\: b\}$ is a joinable itemset. Since common transactions are $T_{2}$ and $T_{3}$, $TWU(cb)= tu(T_{2})+$ $tu(T_{3})= 50 ≥$min_util. Therefore, ULS of $\{c,\: b\}$ is created. Since $iu(cb)= iu(cb,\: T_{2})+ iu(cb,\: T_{3})= 14 + 20 = 34 ≥$min_util, it is added to SHU and joinable itemsets. In Fig. 2(c), $b(b)∧$ $b(d)$$= 0110 ≥ 1$ and $TWU(bd)= tu(T_{2})+ tu(T_{3})= 50 ≥$min_util. ULS of $\{b,\: d\}$ is constructed. Since $iu(bd)= 34 ≥$min_util4, $\{b,\: d\}$ is added to SHU and joinable itemsets. Fig. 2(d) shows the generation of ULS of 3-item $\{e,\:c,\:b\}$ from $\{e,\: c\}$ and $\{c,\: b\}$. $b(ec)$$∧ b(cb)= 0010 ≥ 1$ and $TWU(ecb)= tu(T_{3})= 28 ≥$min_util. Since $iu(ecb)= iu(ec)+ iu(cb)- cu(cb)= 8 + 20 - 2 = 26 ≥$min_util, it is added to SHU and joinable itemsets. $cu(ecb)$ is determined as $cu(ecb)= iu(ec)=8$. In 3-item $\{c,\:b,\:d\}$ of Fig. 2(e), $b(cb)∧$ $b(bd)= 0110$, common transactions $T_{2}$ and $T_{3}$ exist. Since $iu(cbd)= iu(cb)+ iu(bd)- cu(bd)= 34 + 34 - 30 = 38 ≥$min_util$, it is added to HUI and joinable itemsets. Fig. 2(f) shows ULS of 4-item $\{e,\:c,\:b,\:d\}$. Since $iu(ecbd)= iu(ecb)+ iu(cbd)- cu(cbd)=$$26$ $+ 22 - 20 = 28 ≥$min_util, it is a high utility itemset and a joinable itemset, as well. $cu(ecbd)= iu(ecb)= 26$. The Mining process stops since no common transactions exist by bitwise AND operation with 4-item $\{e,\:c,\:b,\:d\}$ and $\{a,\:c,\:b,\:d\}$, which are high utility itemsets.

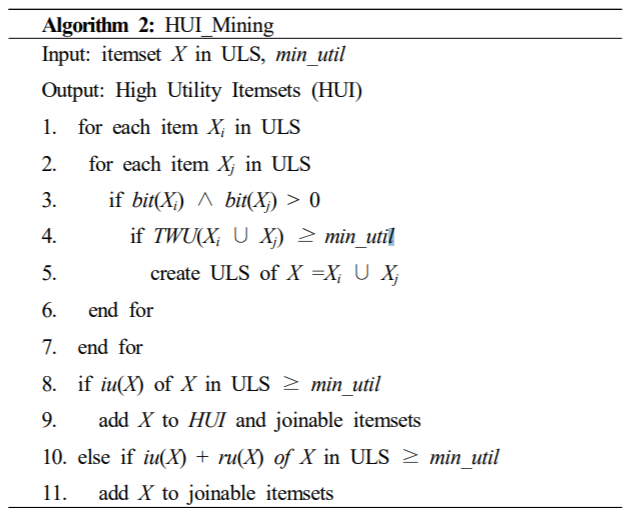

The detailed descriptions of the BHUI and HUI_mining algorithms are given below. BHUI gets two parameters D and min_util as inputs, and initiates our mining process. BHUI initially scans D to create a bitmap to indicate whether each item exists in the transaction, and then, computes the TWU and item utility of each item in I. Then, the items are sorted by TWU in an ascending order. The TWU of each item is used to discard unpromising items from further processing. If TWU of each sorted itemset is greater than min_util, then ULS of the itemset is constructed. The ULS of 1-item are used to explore the search space and to mine the next level of high utility itemsets. After ULS of 1-item is constructed, the HUI_mining is performed repeatedly so as to mine a set of high utility itemsets (HUI). It performs bitwise AND operation for two itemsets in ULS to create a joined itemset and checks if the joined itemset satisfies min_util. It creates ULS of meaningful joined itemsets and outputs new high utility itemsets. The HUI_mining is repeated until no more joined itemset is created. Finally, HUI includes all high utility itemsets.

4.1 Experimental Environment

We used four types of synthetic dataset, such as T10I1000D100K, T10I2000D100K, T10I3000D100K and T10I 4000D100K, to evaluate the performance of the proposed algorithm. The datasets were generated by the data generator of IBM Almaden Quest Research Group, which are widely employed in the pattern mining area. The datasets do not have their own external and internal utility information, so we have set the utility values randomly between 1 and 100, as in the previous studies ^(3,5,6,7).

The dataset used in the experiments were T10I1000D100K, T10I2000D100K, and T10I3000D100K generated by data generator of IBM Almaden Quest Research Group and those generated by adding 1 to 100 randomly to the utility values by items to T10I4000D100K data. Parameters for the experiments are described in Table 4. Number of transactions by each dataset is 100K and the number of distinct items varies from 1K to 4K. Average length of transactions is 10. We experimented it upon changing minimum utility threshold s from 0.01% to 0.1%.

4.2 Experimental Results

A ratio of 1-item with high utility in the whole dataset was reviewed first. The ratio of 1-item with high utility affects join count to influence the number of high utilities and performance time accordingly. Hence, the ratio of 1-item with high utility was investigated among the whole dataset.

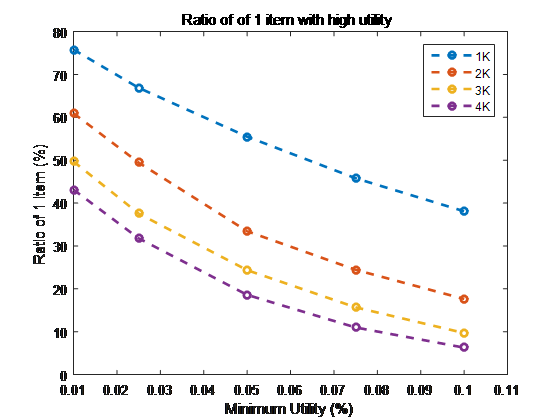

Fig. 3 shows the experimental results. In the case of 1K, a relatively small number of items, 75.8% of total items were shown as high utility items in low minimum utility s=0.01%, and 38.1% of them in s=0.1%. In addition, 43.1% of them were shown as high utility items in s=0.01%, and 6.3% of them in s=0.1% in the case of the 4K dataset, a large number of items. This experimental result, those on data in case of 100K of total transactions, demonstrates a rapid lowering number of high utility items as the number of items is increasing.

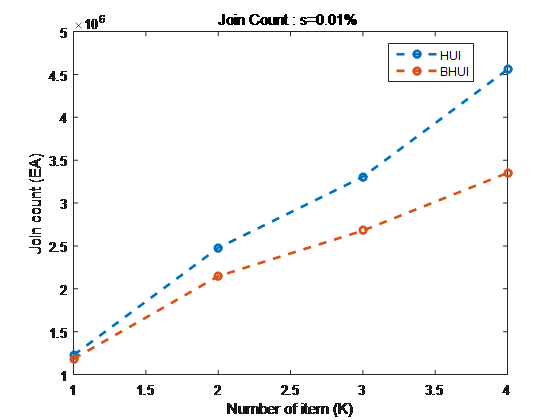

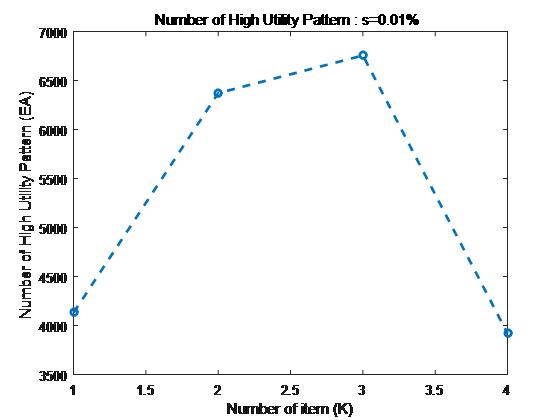

The number of join counts by a number of items was compared as shown in Figure 4. This showed the results in case of minimum utility, s=0.01%. HUI and BHUI showed the difference in 44*103 in case of 1K that the number of items is small and 1.2*106 in case of 4K that the number of items is large. As the number of items is increased, the share of total 1-item high utility items is lowered, however, the total number itself is increased, hence, the join counts among high utility items are increased. Yet, since the BHUI technique proposed in this paper saves the transaction information of each item by bit, the comparison not on the total transactions but on the items with common transactions only is executed, which saves join counts, significantly. Figure 5 shows the number of high utility patterns from each dataset in case of minimum utility, s=0.01%. The results show relatively large number of high utility patterns in the data of item number 2K and 3K, and the lowest number of high utility patterns in the data of item number 4K.

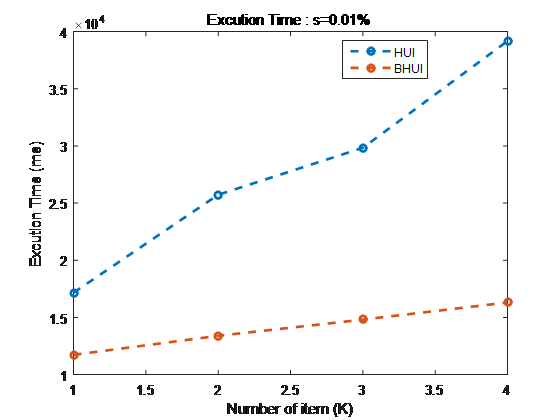

Also, execution time by data items was compared as Figure 6. It shows the results of minimum utility s=0.01% demonstrating the execution time on the data from 1K to 4K of the number of items. These results reflected the proposed BHUI algorithm provided the execution from 1.4 to 2.4 times as fast as the HUI technique. This is considered caused by dramatic lowered unnecessary comparison operations that BHUI lessened the number of join counts significantly.

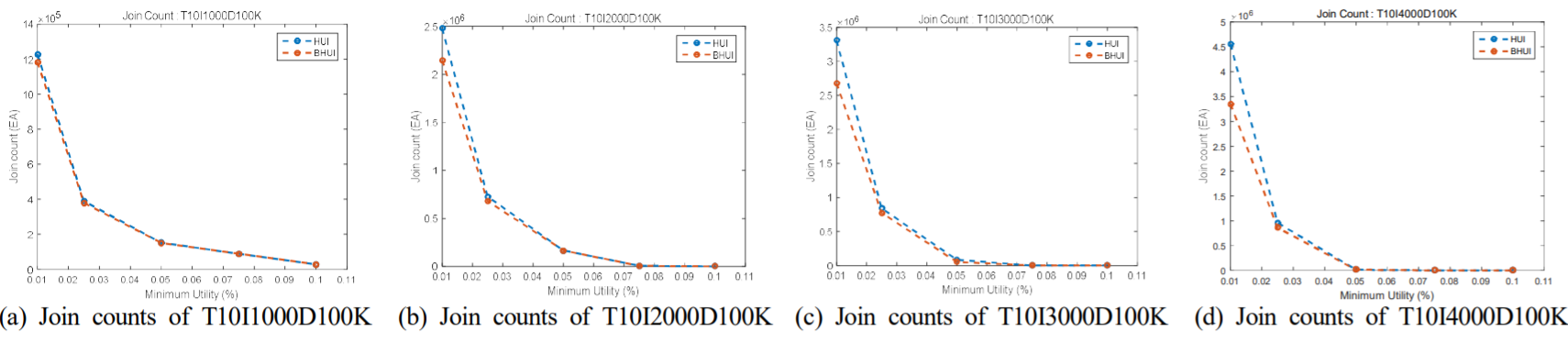

Fig. 7 shows join counts of each dataset by the minimum utility. In all datasets, it shows the trend to be a similar number of join counts between HUI and BHUI as the minimum utility is higher, which may be from the fact that a number of join counts are rapidly lowered as the minimum utility is higher. As the number of 1-item high utility items is greater in BHUI, it can lower the number of join counts remarkably, demonstrating the good performance of BHUI.

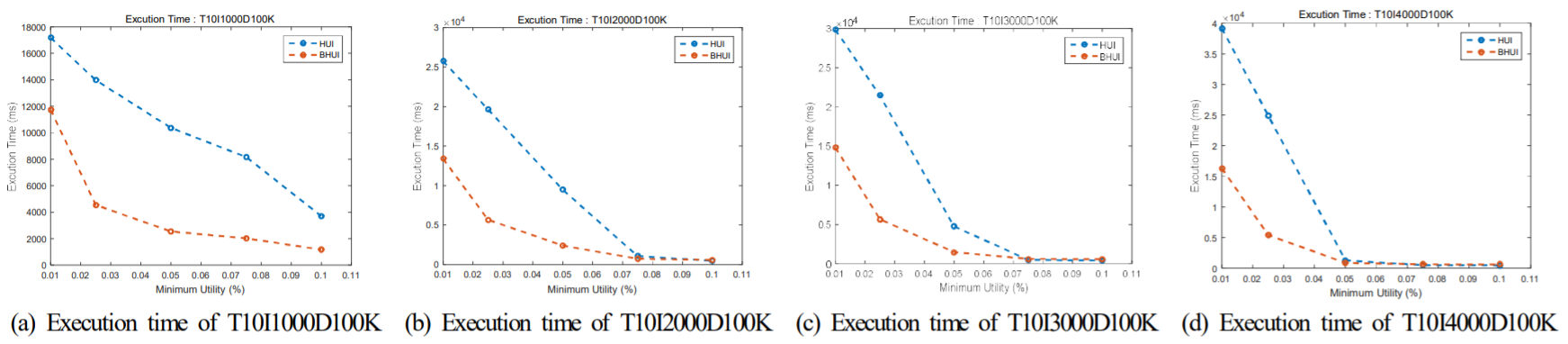

Fig. 8 shows the execution time according to the minimum utility. This shows the execution speed of BHUI from 1.4 to 2.4 times as fast as that of HUI as the minimum utility is lowered in all datasets. Also, it shows the tendency to become similar performance between BHUI and HUI since a number of high utility items is lowered as the minimum utility is greater which lowers the number of join counts rapidly.

In this experiment, maximum 2.4 times faster execution speed with BHUI was shown than that with HUI in case of high numbers of the items and high utility items although the memory consumed more than HUI because it should sustain additional bits by the number of items in transactions.
