2.1 Deblocking Filter Algorithm

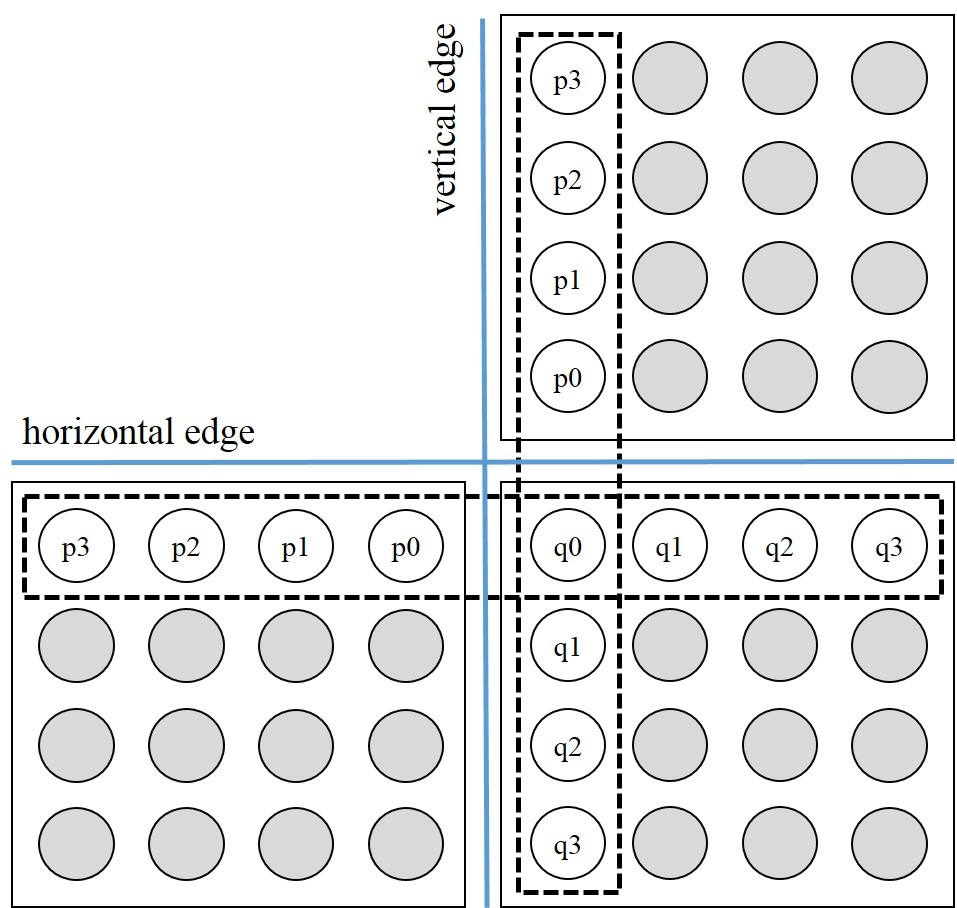

Fig. 1 shows the three adjacent 4x4 pixel blocks and the Deblocking Filter computation boundaries. The vertical filtering is performed along the vertical edge. The horizontal dotted box shows the pixels used for vertical filtering at a row as an example. The vertical filtering is performed on all the four rows of the two horizontally adjacent 4x4 blocks. The horizontal filtering is performed along the horizontal edge. The vertical dotted box shows the pixels used for horizontal filtering at a column as an example. The vertical filtering is performed on all the four columns of the two vertically adjacent 4x4 blocks.

In HEVC, Deblocking Filter is applied on 8x8 block boun- daries in the following procedure. Firstly, boundary strength (BS) is computed to determine the strength of the filtering. Secondly, β, and tc values are computed based on the quantization parameter (QP) of the neighboring blocks. Thirdly, dE value is computed for filter on/off, strong and weak filtering decision. Finally, strong or weak filtering is performed along the horizontal or vertical edges.

2.2 Related Works

In ⁽⁷⁾, the performance is increased by using 6 filters in parallel. In ⁽⁸⁾, register array-based architecture is used to reduce the overlapped computation and 4 filtering boundaries are computed in parallel. In ⁽⁹⁾, to improve the performance, three techniques are used: pipelining, filter order optimization, and zigzag memory mapping. ⁽¹⁰⁾ and ⁽¹¹⁾ are related to the deblocking filter designs but the scope of the problems is not comparable to the compared designs.

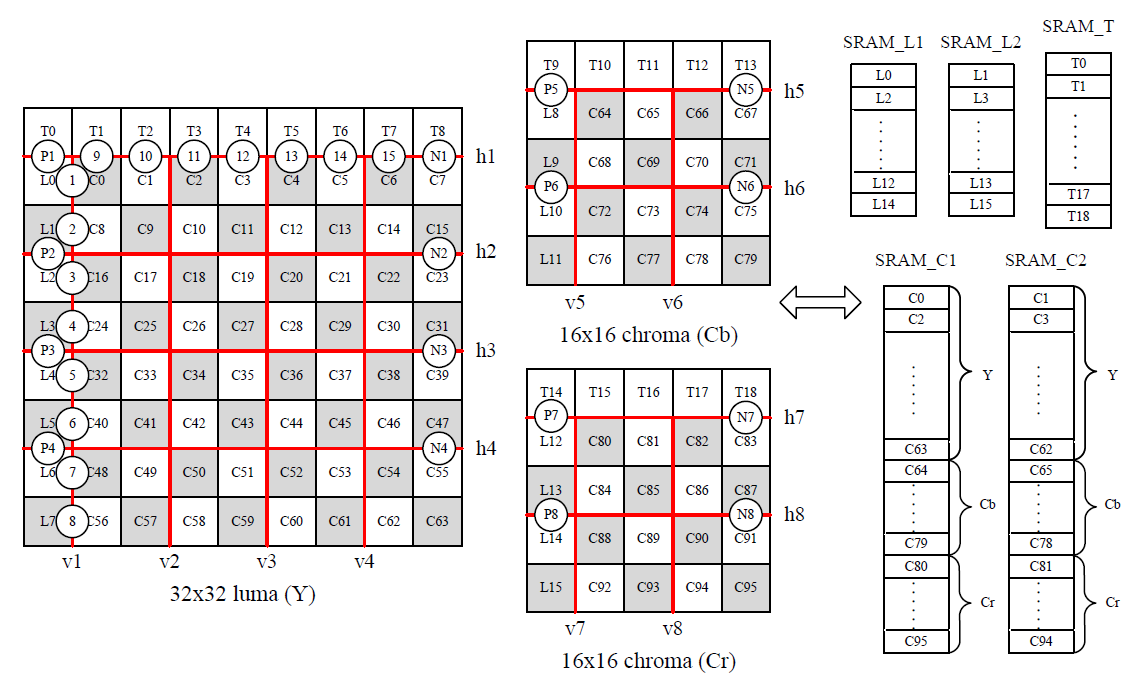

Fig. 2 shows the memory allocation scheme in ⁽⁹⁾. The adjacent 4x4 blocks are distinguished by black and white colors, and they are stored into different SRAMs alternatively to avoid data conflict during SRAM access. However, the performance of this scheme is not enough for a highly parallel VLSI architecture.

The architecture shown in ⁽⁷⁾ cannot process 8K UHD or higher video. The architectures in ⁽⁸⁾ and ⁽⁹⁾ can process 8K UHD 60fps in real time, but the size of the circuits becomes too large (> 600K gates). In addition, the operating clock frequency is not high enough to process 16K UHD video or higher in real time.

3.1 Parallel Architecture

HEVC is more suitable to parallel processing by further reducing data dependency compared with H.264/AVC. The proposed architecture improves the performance by employing parallelism, a multi-stage pipeline with parallel filters. For parallel filter processing, a special memory allocation algorithm is invented for efficient on-chip SRAM access.

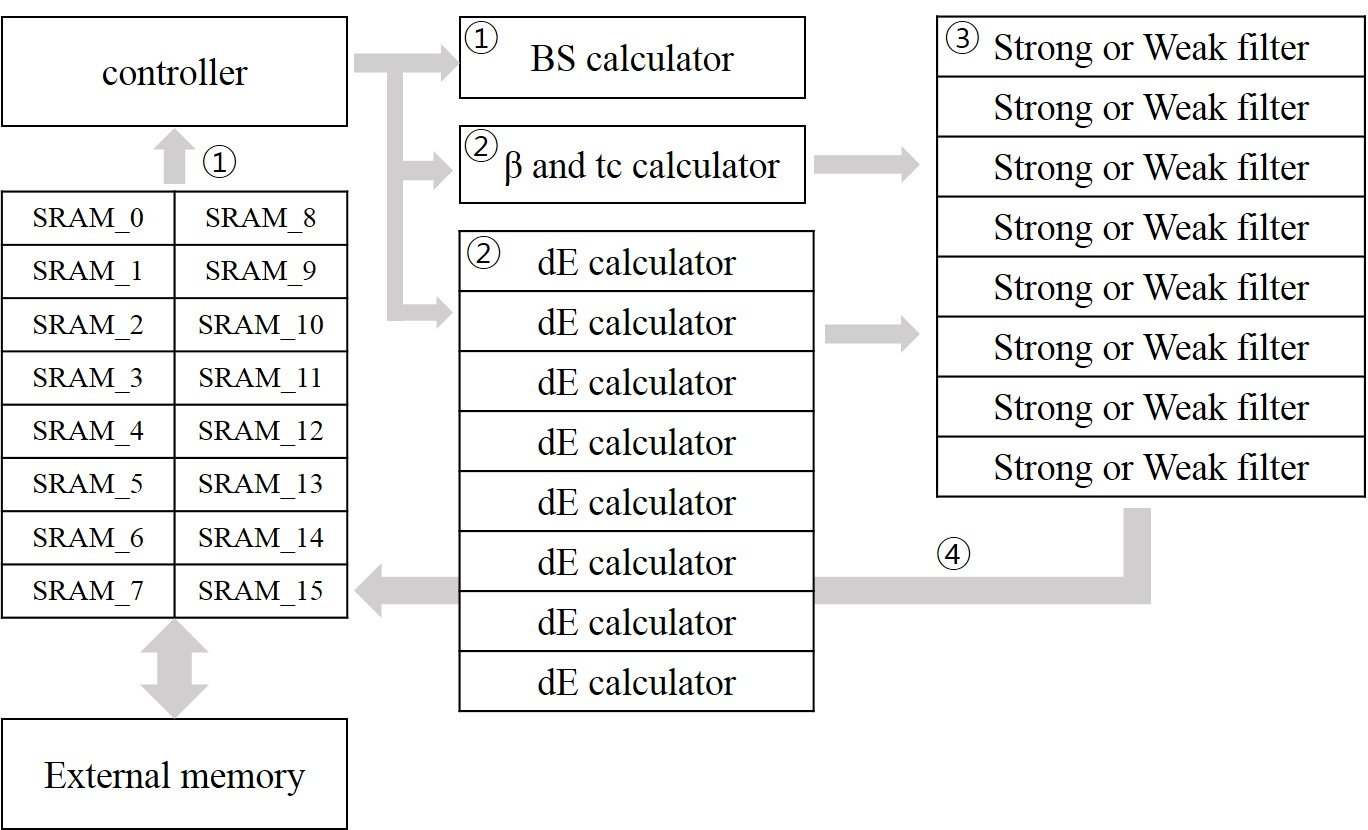

Fig. 3 shows the overall block diagram of the proposed architecture. The proposed architecture consists of the following components: BS calculator, parallel dE calculator, β and tc calculator, parallel filter and SRAM. SRAM is divided into 16 blocks. In SRAM, the current pixels of a 32x32 block and their left and above neighboring pixels are stored. Each SRAM block stores 8 4x4 pixel blocks. The data is read from the SRAM blocks for filtering computation and stored back to the SRAM blocks after filter computation. The read/write SRAM block positions are determined by the proposed memory allocation algorithm.

The proposed architecture works as a 4-stage pipeline as shown in Fig. 3. The circled number in Fig. 4 denotes the pipeline stage. In stage 1, the data is read from SRAM and the BS calculation is performed. In stage 2, β and tc calculation, and 8 parallel dE calculations are performed. In stage 3, 4x4 block filtering is performed in parallel. In stage 4, filtered results are stored back into SRAM blocks.

3.2 Memory Allocation Algorithm

The data access in the on-chip SRAM without conflicts between the parallel filters is very important to maintain high performance. For the proposed parallel filter architecture, we show an efficient memory allocation algorithm to avoid such conflicts. By using this algorithm, each filter is guaranteed to read and write from 2 out of the 16 SRAM blocks without conflicts between them in parallel.

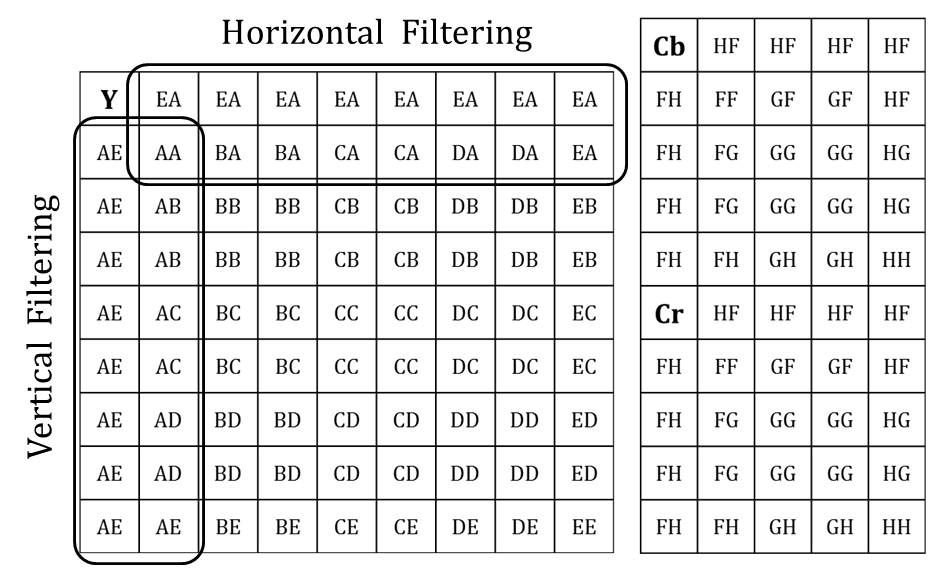

The filtering boundary of a deblocking filter can be either vertical or horizontal. As shown in Fig. 3, the proposed architecture has 16 SRAM blocks. Fig. 4 shows the 32x32 block waiting for the Deblocking Filter operation in parallel. Each named block is a 4x4 block. Our goal is to allocate these 4x4 blocks into the 16 SRAM blocks such that no data conflicts occur between the filters during the parallel filter computation.

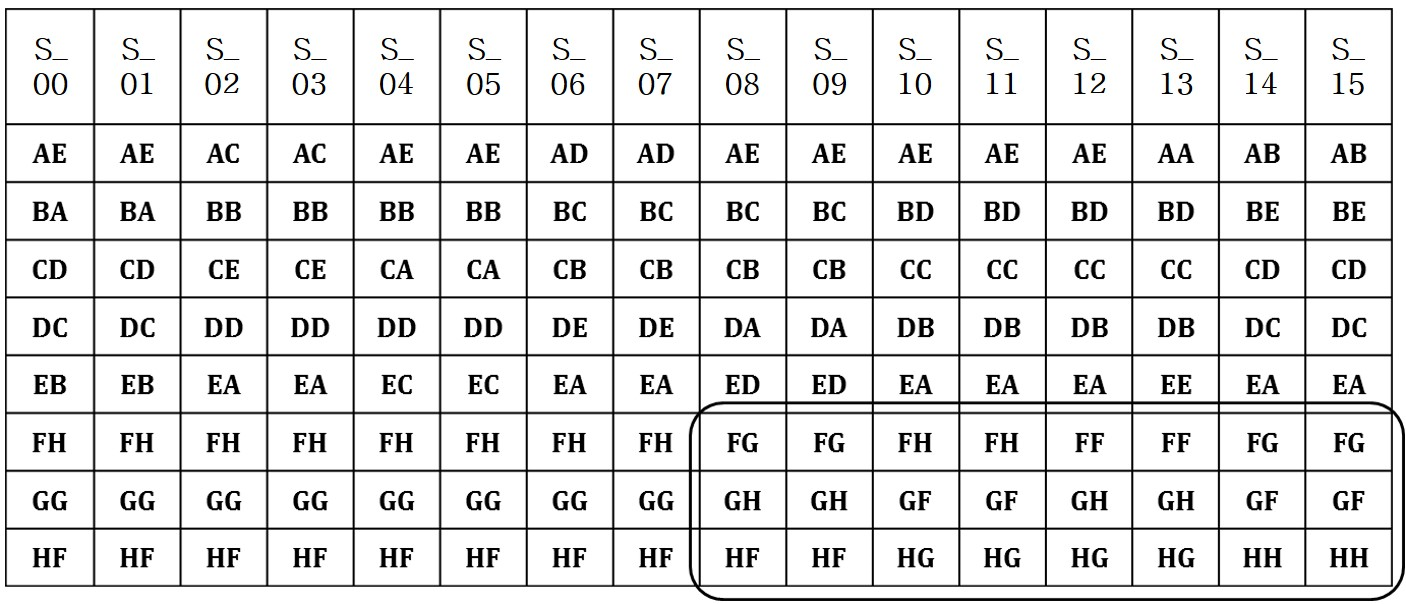

As explained before, each SRAM block stores 8 4x4 pixel blocks. In Fig. 4, each block is named by 2 letters such as AA or BC. The block with the same first letter belongs to the same vertical filtering. For example, In Fig. 4, blocks AE’s, AA, AB’s, AC’s and AD’s belong to the group for same vertical filtering, and all of them have same first letter ‘A’. Fig. 13 is an example final data allocation. The blocks with initial ‘A’ are stored in the first row of the SRAM blocks evenly spread across them without any overlaps. Therefore, the vertical filtering of this data group can be performed by 8 filters accessing different SRAM blocks without conflicts at the same time.

Our proposed memory allocation algorithm shows a deterministic way to decide the SRAM location by using two letters on each 4x4 block. The second letter of the block name is used to denote the same horizontal filtering group.

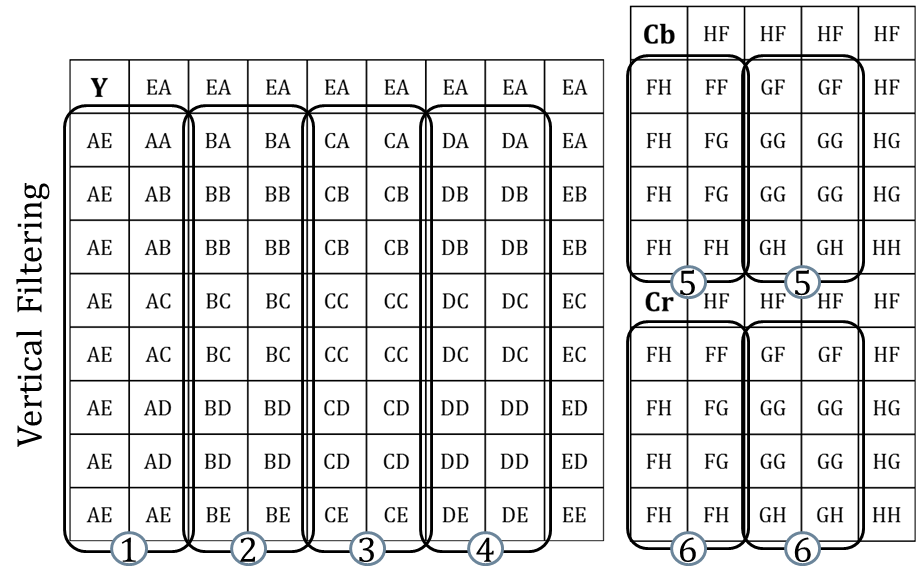

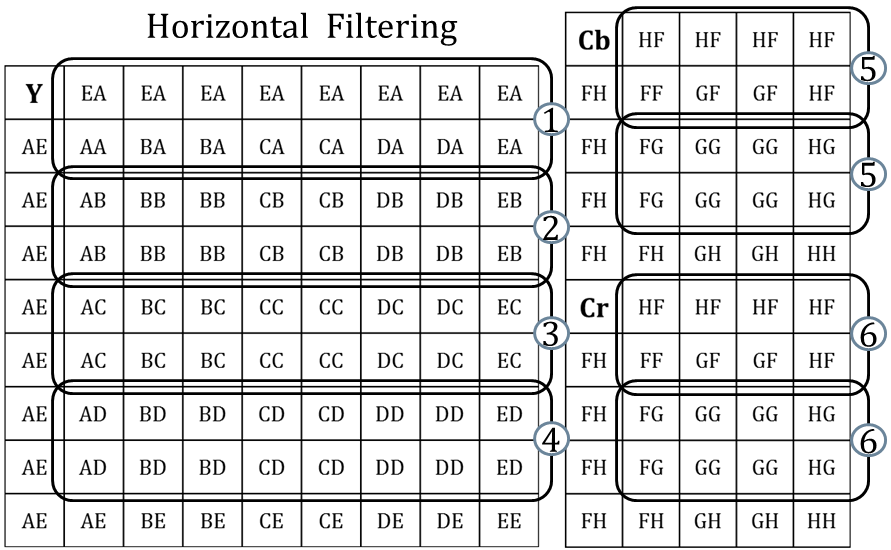

The filtering order of HEVC is (1) the vertical filtering shown in Fig. 5 done first, and then (2) the horizontal filtering shown in Fig. 6 next. For example, the blocks AA, AB, AC, AD and AE are used for same vertical filtering, and BA, BB, BC, BD and BE are used for another vertical filtering as shown in Fig. 5.

For horizontal filtering, AA, BA, CA, DA and EA belong to the same filtering group, and AB, BB, CB, DB, and EB belong to another filtering group. Same filtering group must be stored into different SRAM blocks to avoid the data access conflicts during parallel filter computation. By applying these rules on the 32x32 pixel block using 8 alphabet letters as shown in Fig. 4, we can obtain the goal allocation as shown in Fig. 13 eventually. All the pixel blocks are stored into SRAM blocks such that no access conflicts occur during the filter computation.

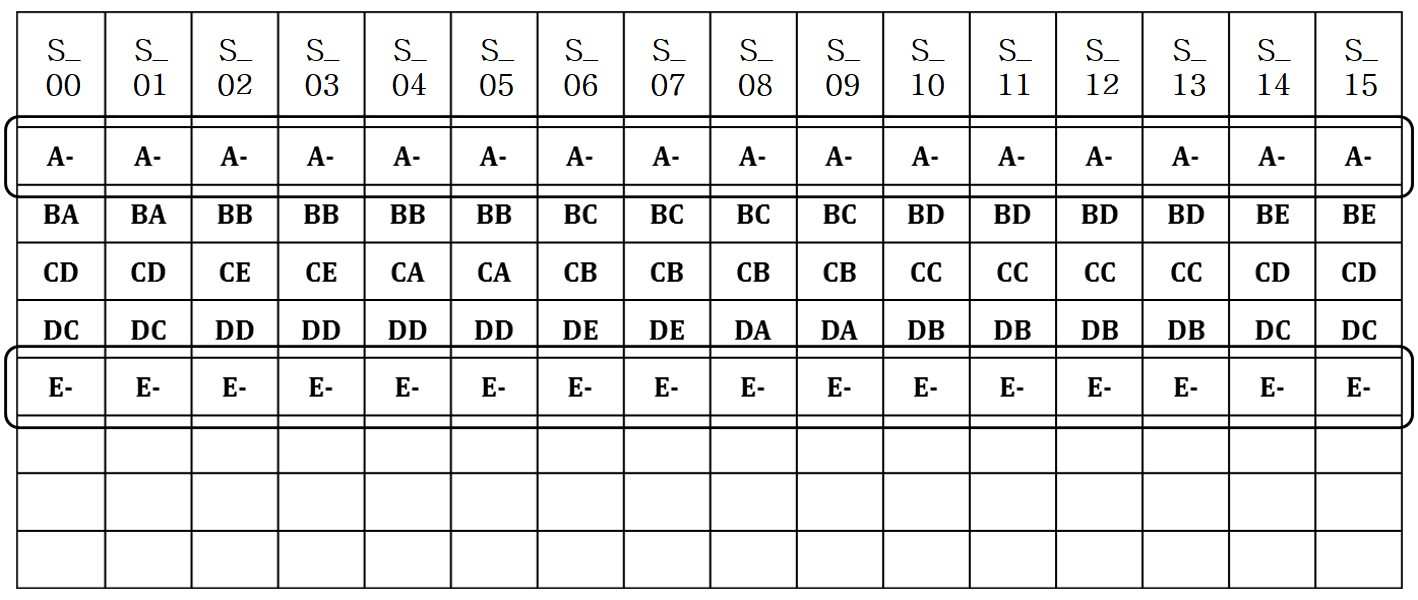

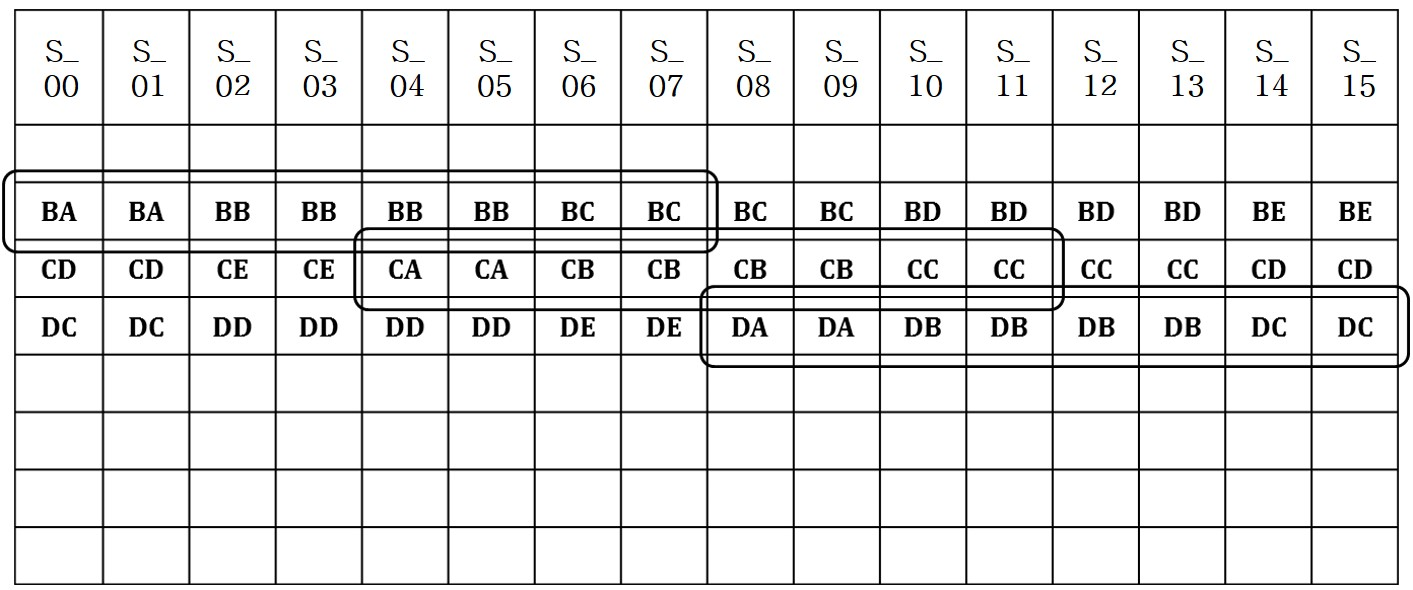

Fig. 7 ~ 12 illustrate a deterministic algorithm to reach a memory allocation result shown in Fig. 13 without any access conflicts. Firstly, as shown in Fig. 7, allocate B-, C-, D- blocks with 4 space gaps between the rows. Note that all the blocks are allocated into SRAM blocks (S_0~S_15) such that each SRAM has no conflicting letters for first and second positions. Therefore there is no conflict in the SRAM access. After this allocation, there are A- and E- blocks waiting for the allocation as shown in Fig. 8.

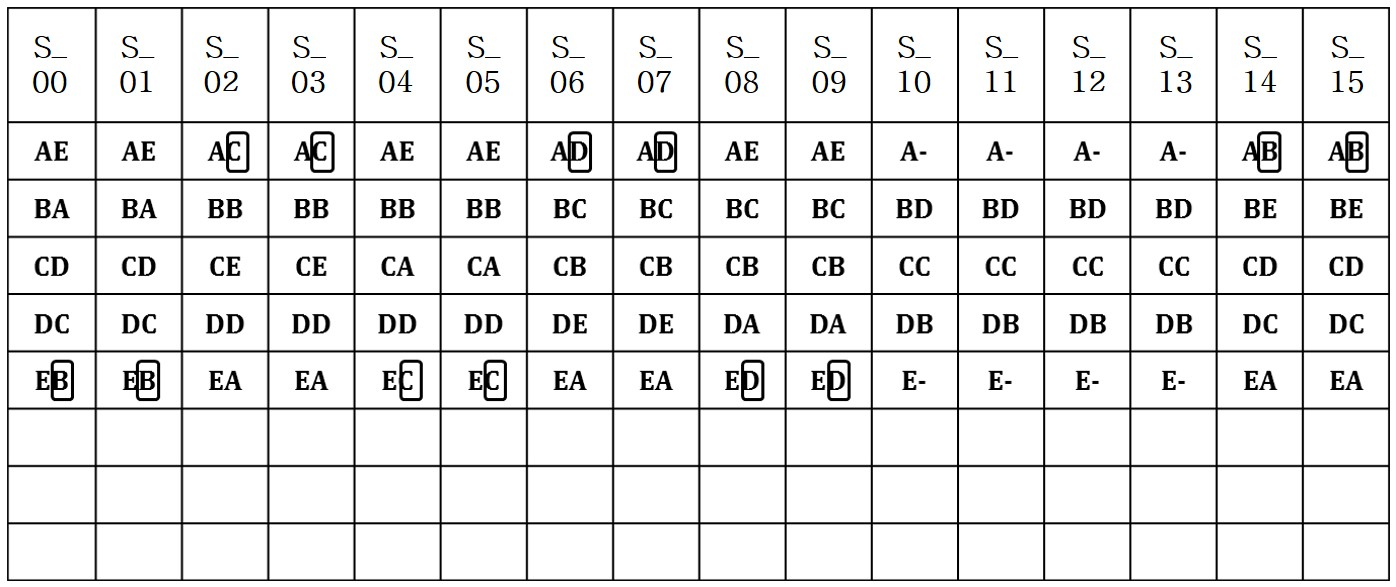

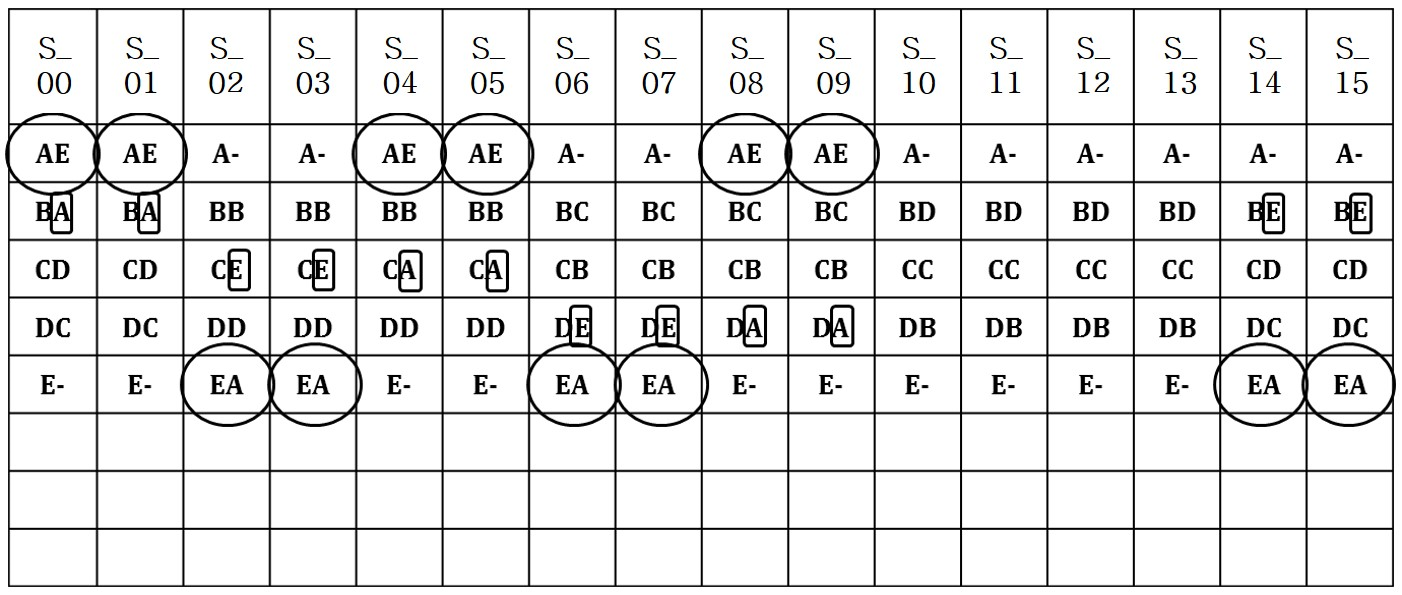

Secondly, as shown in Fig. 9, for the SRAM column with -A assigned like SRAM_1, put AE in the first row. For the column with -E, put EA in the fifth row. As shown in Fig. 10, fill in the remaining letter on the column with only one empty slot.

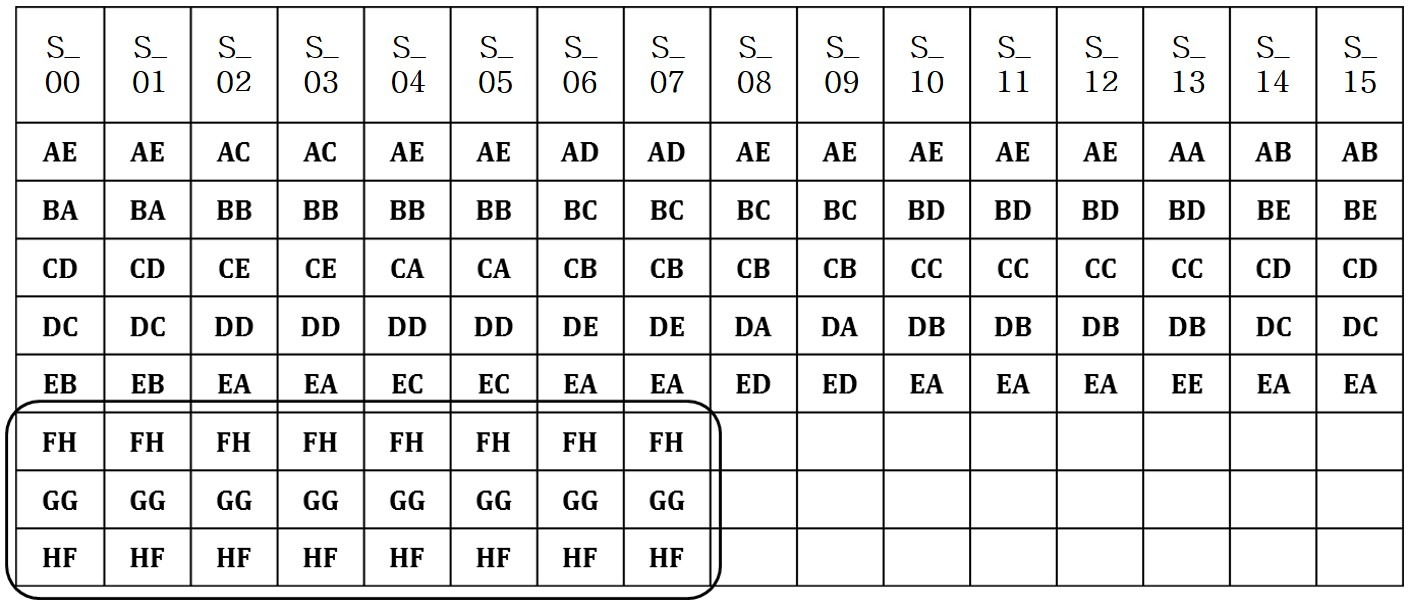

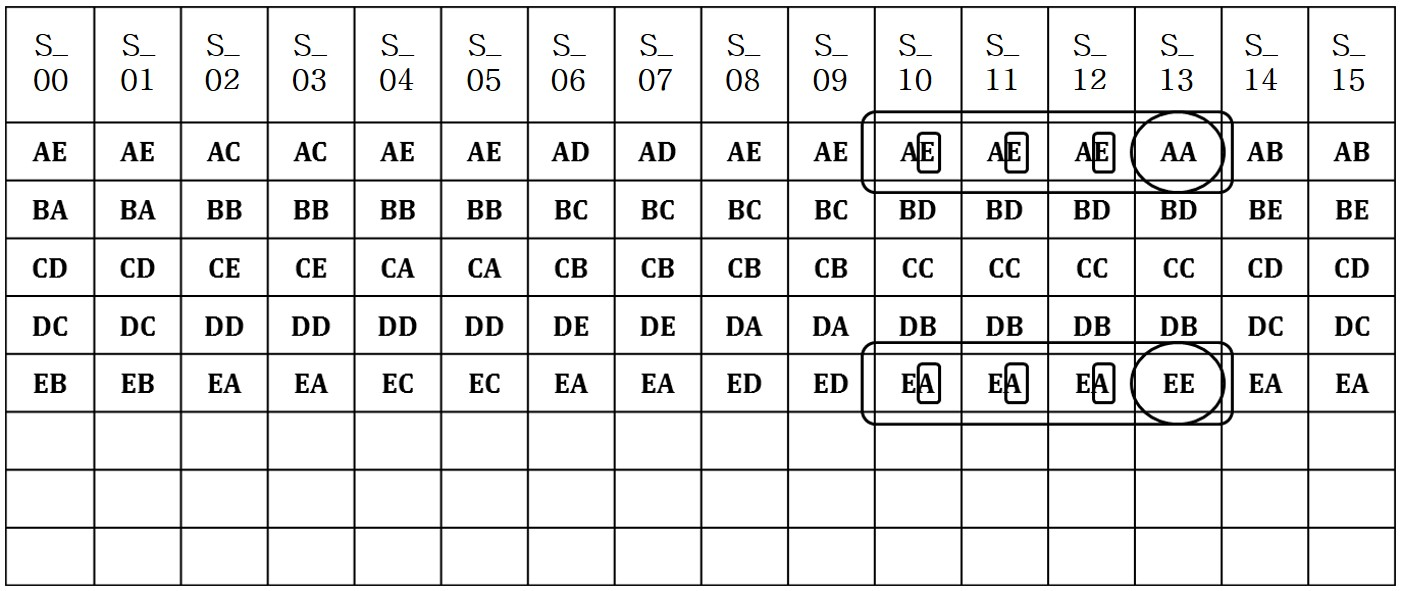

Finally, as shown in Fig. 11, fill in the remaining two rows with AA and EE for one column, and with AE and EA for the other three columns. After all the luminance blocks are allocated, Cb and Cr blocks are allocated similarly. As shown in Fig. 12, allocate the GG blocks in the SRAMs, and then allocate FH and HF blocks. The remaining columns are allocated such that the first and second letters are not overlapped as shown in Fig. 13.

As long as the letters of each position are not overlapped in a column, there can be many solutions. In this paper, we showed a deterministic algorithm to find a working solution quickly.

By using the proposed memory allocation algorithm with an 8 filter architecture, the execution time to perform filter oper- ations on 96 boundaries for a 32x32 pixel block is 12 clock cycles. To add the 6 cycles of starting and ending delays of pipelines, the total execution time is 18 clock cycles.

The memory allocation algorithm can be used for other numbers of filter parallelism in a similar fashion. If the number of SRAM is increased, the number of parallel filters can be increased proportionally. For example, 16 parallel filters can be used for 32 SRAM blocks.
