2.1 Literature review on big data architecture design

In order to prevent such railway accidents and industrial safety accidents, prior studies such as failure analysis and reliability evaluation methods such as FTA (Fault Tree Analysis), big data and artificial intelligence technologies, and big data architecture design have been conducted.

We will now introduce prior research and related technologies. First, in previous studies for big data railway architecture, the big data railway safety platform architecture was designed by dividing it into five parts: collection, API gateway, preprocessing, storage, and analysis ^[3].

Additionally, in the service layer-centered big data architecture research, the architecture was divided into four layers: the storage layer, processing layer, service layer, and ingestion layer for predictive maintenance of railroad points.

Furthermore, the main functions of the architecture are to collect data from external sources, process and retrieve collected data, and perform data aggregation, modeling, analysis, and visualization, with the architecture designed based on Hadoop and Apache NIFI ^[4]. FTA is a quantitative failure analysis and reliability evaluation method that uses FT (Fault Tree), which logically expresses the relationship with the causes of system failure to find vulnerable parts and improve system reliability ^[5].

FTA is a significantly reasonable failure and defect analysis method. If FTA is used as a standard for artificial intelligence and big data analysis, the reliability of defect analysis can be increased. MQTT (Message Queue Telemetry Transport) is a message transmission and reception framework for large-scale IoT communication of small devices standardized in 2016.

MQTT's publish-subscribe messaging pattern can communicate only through a broker. MQTT has the following three technical characteristics ^[6].

ⓐ Clients requesting a connection with the MQTT broker either explicitly disconnect after making a TCP/IP socket connection or remain connected until they are disconnected due to network conditions.

ⓑ MQTT's publish-subscribe messaging pattern can communicate only through a broker. Additionally, when a message is published on the set topic, the message can be published to the clients subscribing to the topic, and both one-to-one and one-to-many communication is possible.

ⓒ QoS has 3 levels, where 0 guarantees a maximum of one transmission, 1 guarantees at least one transmission, and 2 guarantees one reception.

Kafka was developed by Linkedin and is a distributed data streaming platform based on message queues that can publish, subscribe, store, and process data streams in real-time. Unlike conventional message transmission systems, Kafka manages messages as event queues in the file system rather than memory ^[7].

MongoDB is different from relational databases such as Oracle and MySQL, which store data in tables and have row-centered storage structures that access databases using SQL. MongoDB is a NoSQL with a document-centered storage structure, and data is stored as keys and values in Binary JSON format. It consists of a collection that matches a table, a document that matches a row, and a field that matches a column ^[8]. In a study of big data architecture for an IoT-based smart manufacturing system, MQTT and Kafka are combined to collect, relay, and store sensor data, and MongoDB, relational databases, and Elasticsearch are adopted as consumers ^[9]. Another deep learning-based network for real-time object detection is called YOLO (You Only Look Once). YOLO is a one-stage detection algorithm that performs classification and location identification simultaneously and has the advantage of being able to detect objects faster than two-stage detection algorithms based on R-CNN such as fast R-CNN and SPPNet ^[10].

In this study, a railway safety platform application model was presented using the IoT-based big data platform architecture. Additionally, using YOLOv5, an object detection algorithm, an experiment was conducted on how image data on a railroad track can be used in anomaly detection for safe railway operation, and the results of the experiment are presented.

Fig. 1. Big data platform architecture design process

2.2 Research Method

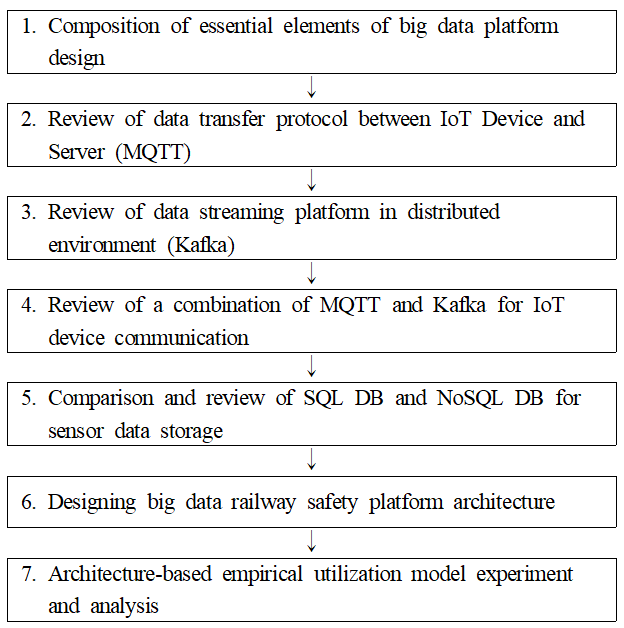

Referring to previous studies, this study applied the following research method to design the railway safety big data platform architecture. The research process is shown in Fig. 1.

First, the essential elements for big data platform design were defined in five areas: ① data collection area, ② transmission area, ③ storage area, ④ monitoring and control area, and ⑤ artificial intelligence analysis area.

Second, we investigated technological details and application cases to analyze whether the technologies in the five areas defined above are appropriate for IoT device communication and sensor data storage and analysis.

Third, we combined the technologies of each area to design the optimal railway safety big data platform architecture.

Lastly, based on the designed railway safety big data platform architecture, we presented an application model that identifies and classifies railroad track status images collected from trains through a deep learning algorithm.

3.1 Big Data Architecture Design Considerations

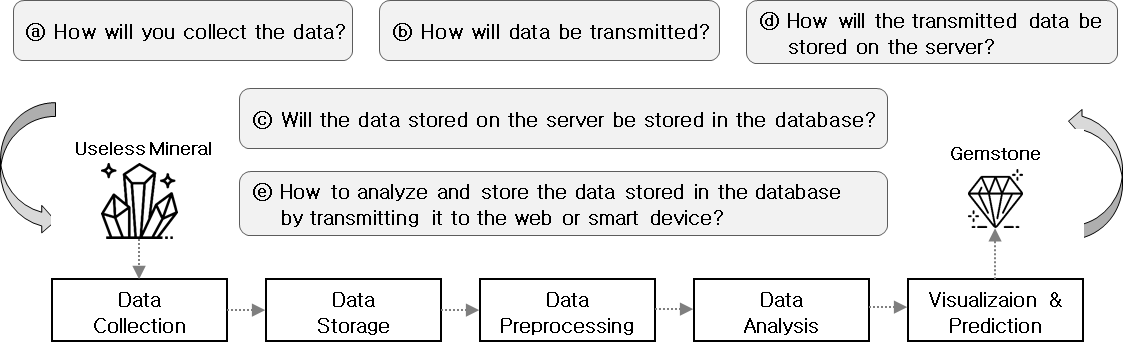

In order to design the big data railway safety platform architecture, the items ⓐ～ⓔ in Fig. 2 must be defined in advance. In other words, the architecture should be designed by considering matters related to data collection transmission and storage database analysis in all stages of the data life cycle.

Fig. 2. Stages of data processing

Additionally, when the six predefined tasks for design are completed, it is to be decided in advance which IoT device to use in each configuration area where data is processed and which communication method and database solution to select.

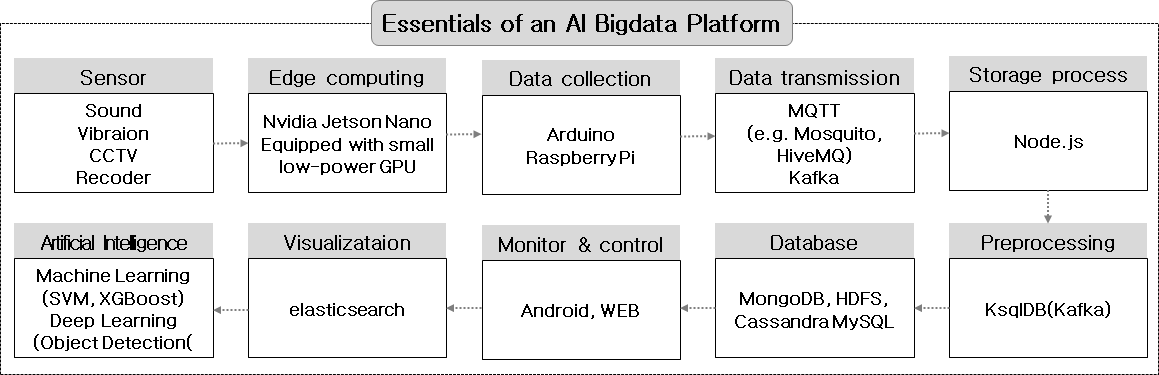

Major devices and solutions for designing big data architectures can be applied by dividing them by function and role for each processing stage of the data life cycle, as shown in Fig. 3.

Fig. 3. Essential elements for each step of an big data platform

3.2 MQTT and Kafka Comparison and Operation Mechanism

MQTT supports reliable message delivery in the communication environment of IoT devices and servers using low-cost, low-bandwidth, and unstable connections. On the other hand, Kafka supports fault tolerance, low latency, and high throughput and can effectively handle large-capacity real-time stream event data that is difficult to handle with traditional message brokers. In this respect, MQTT and Kafka can compensate for their mutual shortcomings in IoT device communication, as shown in the comparison table between MQTT and Kafka in Table 1.

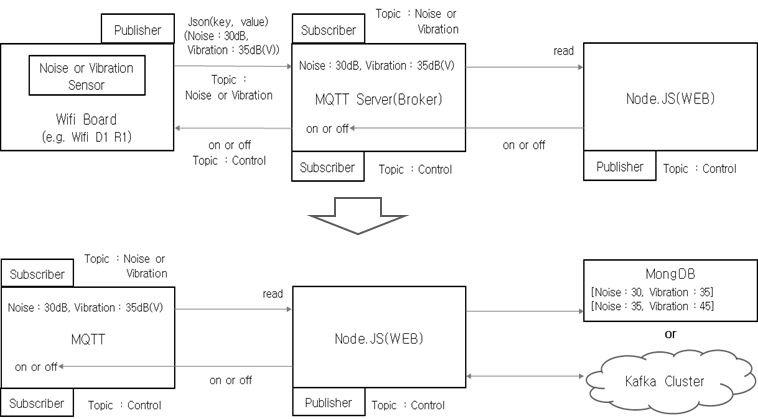

In MQTT (Message Queuing Telemetry Transport), when a publisher, such as an IoT device, transmits data in JSON format along with a topic to an MQTT broker, subscribers who have registered the topic with the MQTT broker in advance can receive the data, as shown in Fig. 4. Data received from MQTT brokers is stored in databases such as MongoDB through application programs such as Node.js. Communication between IoT devices and MQTT brokers uses TCP-based WebSocket or RESTful service.

Fig. 4. Operation mechanism of MQTT

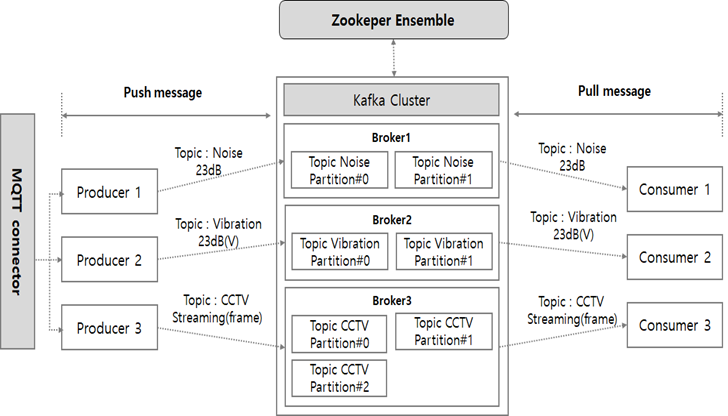

Kafka consists of a producer that produces data, a consumer that consumes data, and a Kafka cluster that relays data using topics, as shown in Fig. 5 ^[11]. In addition, the Kafka cluster consists of several brokers with a Jupyter ensemble and partitions. Kafka can process event streams that cannot be processed on messaging platforms such as MQTT. Additionally, Kafka writes events around pre-registered topics and later operates to allow the consumer to read the topics of interest from the disk, unlike MQTT, which processes messages in memory.

Fig. 5. Structure and operation process of Kafka cluster (Apache Kafka Tutorial- Apache Kafka Cluster Architecture)

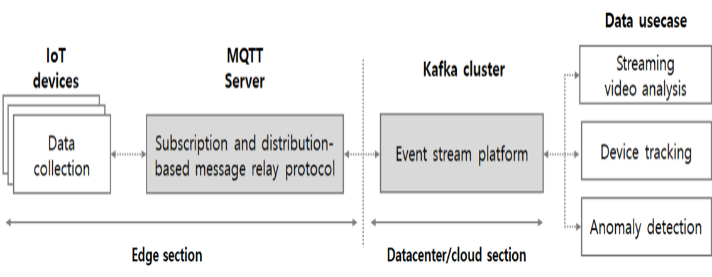

As for the physical locations of MQTT and Kafka, as shown in Fig. 6, MQTT processes data transmission and reception based on publisher and subscriber in IoT devices and edge areas, and Kafka clusters process distributed event stream data in data centers.

Fig. 6. Physical position of MQTT and Kafka

The result of analyzing these technical characteristics of MQTT and Kafka to collect various data generated from train operations through many IoT devices, connecting the MQTT server and Kafka cluster, as shown in Fig. 7, is considered the optimal combination.

Fig. 7. Combination of MQTT and Kafka

3.3 Document-oriented Database and NoSQL, Schemeless MongoDB

As shown in the comparison table in Table 2, MongoDB differs from Oracle and MySQL, which have a row-oriented storage structure that stores data in tables and accesses databases using SQL. MongoDB is a NoSQL with a document-oriented storage structure, and data is stored in the Binary JSON format of key and value. It also consists of a collection that matches the table, documents that match the rows, and fields that match the columns.

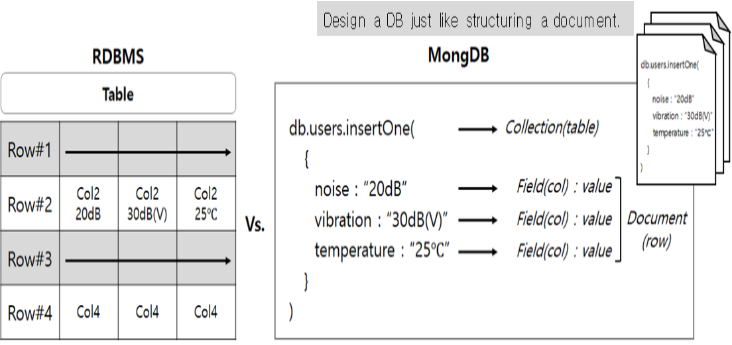

A key feature of MongoDB, which is designing the database in a way that documents are structured, is shown in Fig. 8 below.

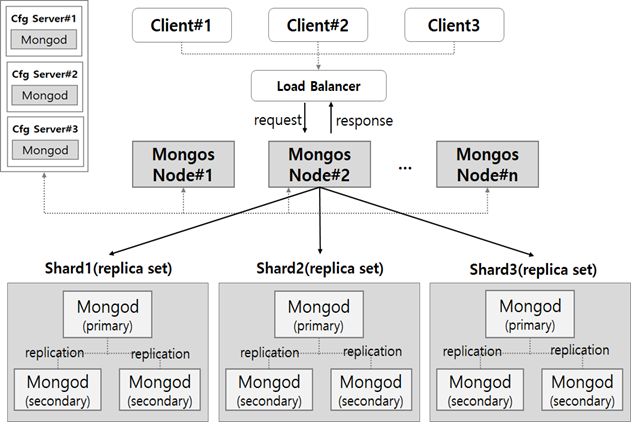

MongoDB is a database suitable for sharding for load balancing, faster processing, and efficient backup and recovery strategies. The structure and operation mechanism of MongoDB are as shown in Fig. 9, where the client accesses the database through the mongos router and stores the data distributed in three shards. One shard forms a replica set by replicating data to prevent data loss, and the config server manages metadata required by mongos, such as the location of distributed data.

Fig. 8. Structure comparison of MongoDB and RDBM

Fig. 9. Structure and operation mechanism of MongoDB

3.4 Big Data Railway Safety Platform Final Architecture

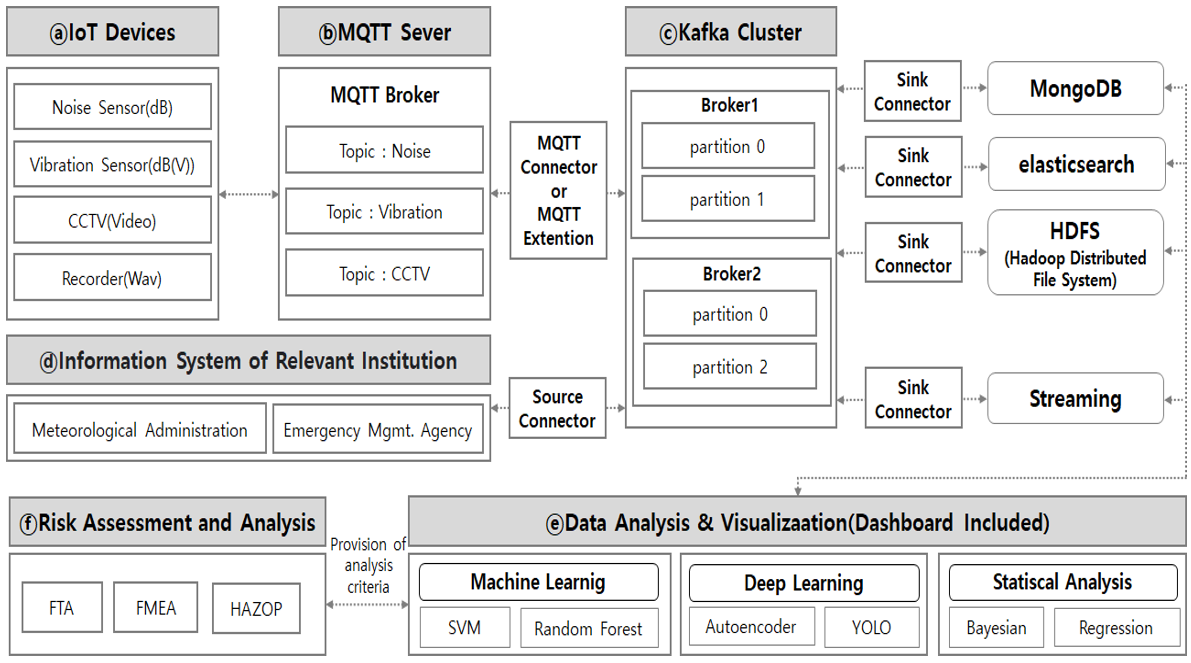

In this study, the final design result of the architecture centered on MQTT, Kafka, and MongoDB, which are the main elements of a data publisher (producer), subscriber (consumer), and storage, is shown in Fig. 10. The architecture is divided into a total of six areas as follows.

ⓐ IoT Devices ⓑ MQTT Server ⓒ Kafka Cluster

ⓓ Information System of Relevant Institution

ⓔ Data Analysis & Visualization

ⓕ Risk Assessment and Analysis Technique

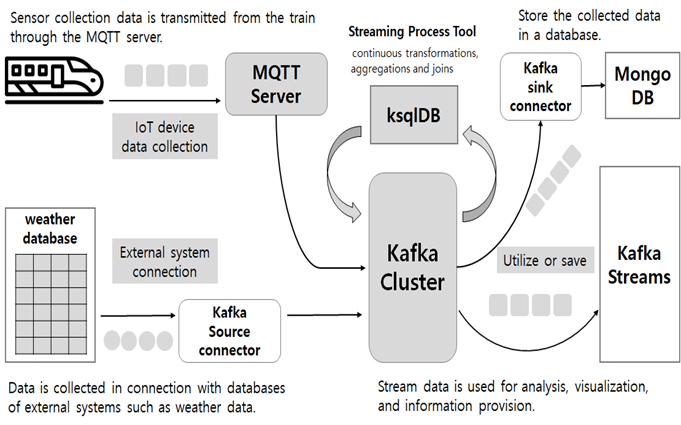

Fig. 11 shows the application model for AI big data platform architecture design for railway safety ^[12]. The information is collected and measured by a large number of sensors installed in the train, such as noise, vibration, video, and sound.

Fig. 10. The Layout of railway safety platform architecture

The data gathered is registered as topics in MQTT and transmitted to the Kafka cluster through MQTT CONNECT, and the consumers who register the topic in advance receive the data and perform statistical data analysis or artificial intelligence analysis.

Fig. 11. The layout of railway safety platform Architecture (H, Kim, "The Streaming Transformation and the Rise of Apache Kafka®, CONFLUENT, 2023)

4.1 Railroad Track Object Detection Application Model

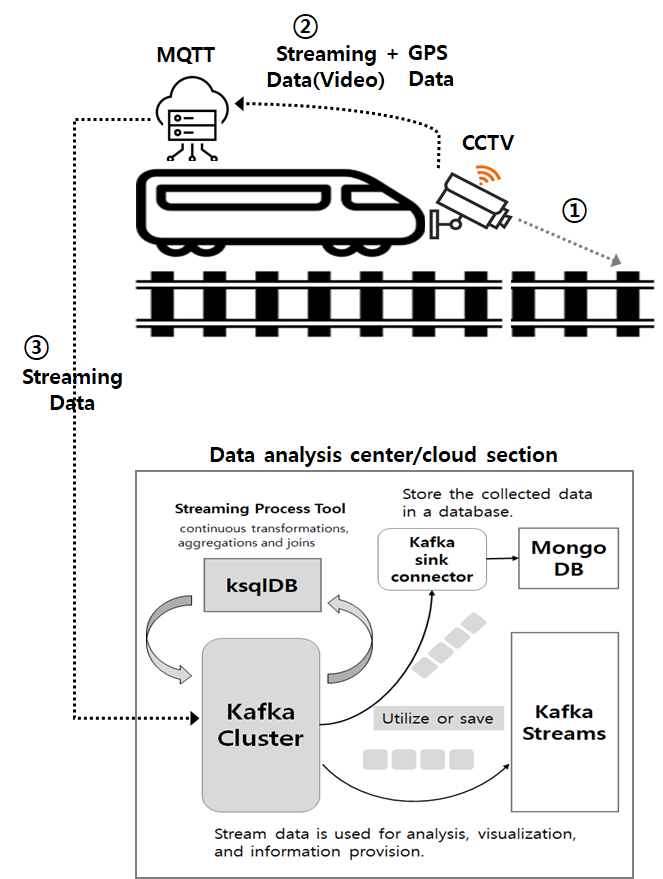

As shown in Fig. 12, this study proposes an application model that classifies the rail components and detects the damage status by learning and analyzing images of railroad tracks collected from CCTVs installed in front of the train using the YOLOv5 object detection algorithm.

Fig. 12. Application model of track object detection-based railway safety platform

4.2 Acquisition and Pre-processing of Learning Data for Application Model Verification

The learning data was provided with images and annotation files for high-speed railroad tracks from the AIHUB data hub portal operated by the Korean National Information Society Agency. The data includes 24,615 image files and annotation files. The provided data was divided into learning data, verification data, and test data as shown in Table 3, and the objects labeled in the image file were classified into 16 object classes, including eight normal components and eight abnormal components, as shown in Table 4.

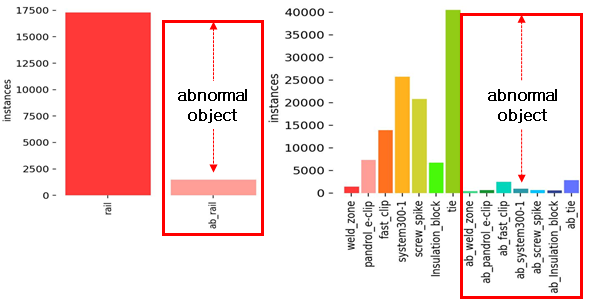

The distribution information of the objects of normal components and abnormal components of the railroad track is shown in Fig. 13, and the quantity of each object of abnormal components is shown in Table 5.

Fig. 13. Distribution of normal and abnormal components(Left: railroad tracks, Right : rail components)

Here, the number of abnormal object datasets is smaller than that of normal object data, but no data augmentation techniques have been used to correct bias.

4.3 Railroad Track Object Detection Experimental Process

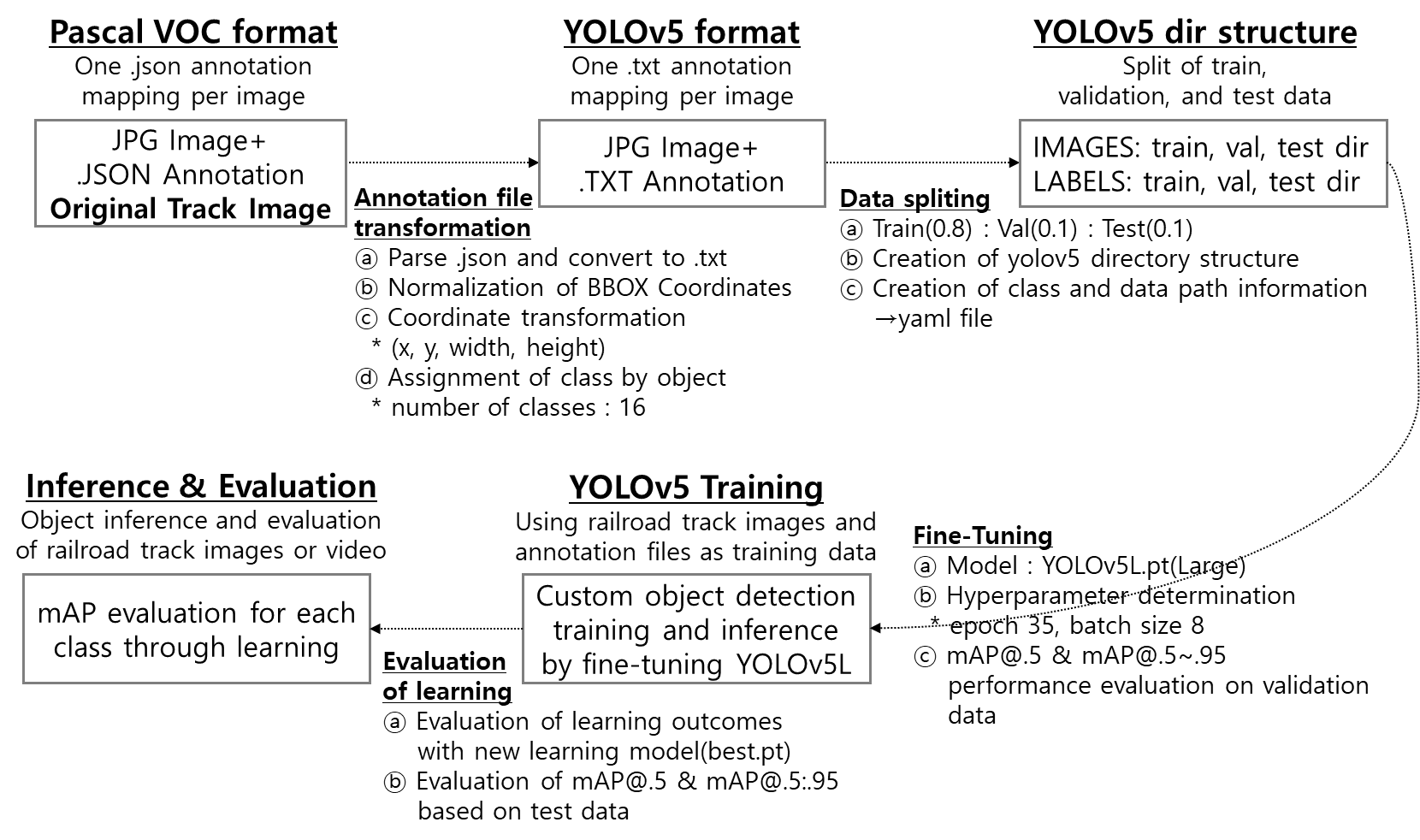

Fig. 14 shows the deep learning and inference process using the YOLOv5 algorithm and training data.

Fig. 14. Object detection experiment process using YOLOv5

First, the JSON annotation format of the collected original Pascal Voc format was parsed and converted to the YOLO format. In this process, normalization and coordinate transformation were performed, and object classes were classified into eight normal components and eight abnormal components. We then created a directory structure to enable YOLOv5 training and performed training through the YOLOv5 Large model. In addition, the annotation type of railroad tracks is a polygon for image segmentation, and the annotation type of other railroad components is a bounding box for object detection. No objects were detected in the result trained by combining both annotation types: Polygon and bounding box.

Therefore, by dividing the railroad tracks and the rest of the rail components, YOLOv5 learning, inference, and evaluation were performed independently. In this experiment, the hyperparameters were set to 30 epochs and 8 batch sizes.

Furthermore, we fine-tuned a YOLOv5 large model using railroad track images and annotation files as training data for custom object detection training and inference.

4.4 Learning results of railroad tracks and rail components detection using YOLOv5 algorithm

It took about 6.6 hours to learn over 30 epochs, using YOLOv5 as a computing resource equipped with the NVIDIA GeForce RTX 3060 graphic card. The performance of object detection and image classification algorithms in computer vision is evaluated by average precision (AP). If there are multiple object classes, the average mAP can be obtained by calculating the AP for each class and dividing the sum of all APs by the number of object classes, as shown in Equation (1). In this experiment, the precision of mAP@.50 is 0.919, and the precision of mAP@@.50-95 is 0.853.

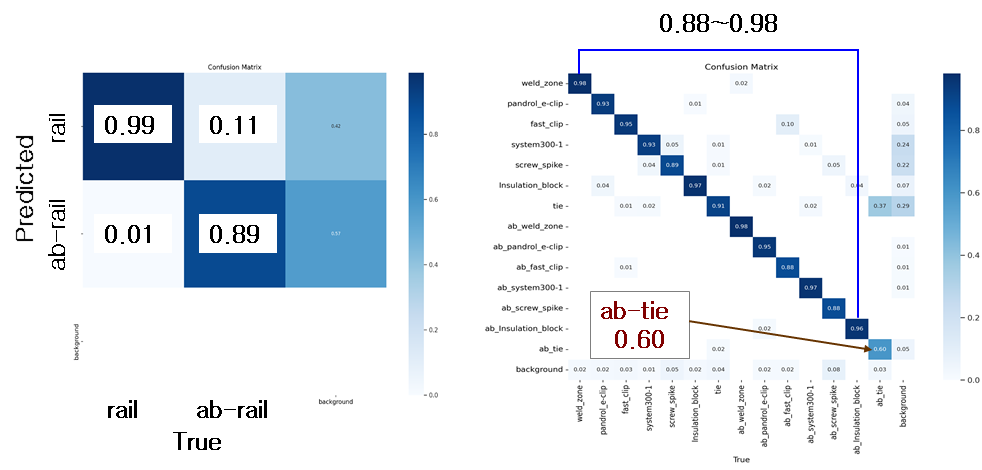

The results of the confusion matrix are shown in Fig. 15. In the confusion matrix, the predictive performance for abnormal tie components among eight normal components and eight abnormal components was 0.6, and the predictive performance for the remaining normal and abnormal components was 0.88 or higher.

Fig. 15. Confusion matrix of other normal components and abnormal components

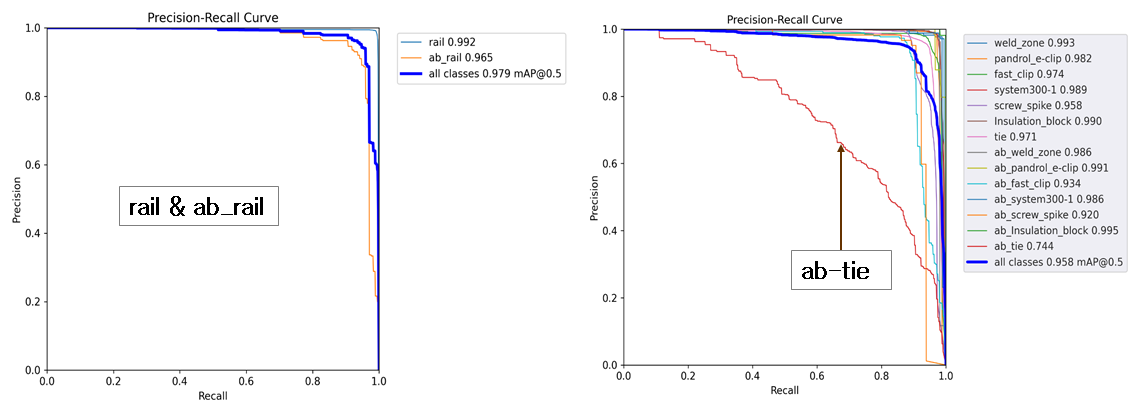

Fig. 16. PR (Precision-Recall) curve of normal components and abnormal components

Fig. 17. Inference results of railroad tracks and rail components using learning model weight (best.pt)

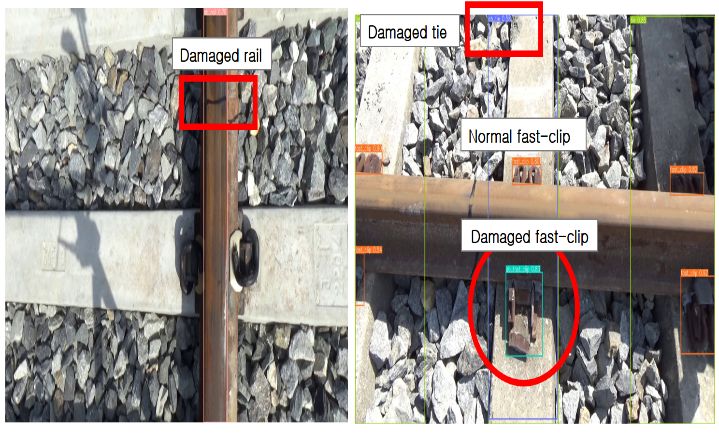

The precision-recall curve in Fig. 16 is similar to the confusion matrix results. The inference results for the track image of the test data are shown in Fig. 17. In the left figure, the damaged rail was detected well, and in the right figure, it can be confirmed that the damaged fast clip components and tie components were accurately detected. Other normal components were also detected accurately.
